Workshops

A flexible and personal timber building - workshop, studio, garden tool storage or the option to convert it to an office.
Workshops
Workshops

A timber workshop for your own space

Perhaps the most easy to personalise timber building we manufacture, a wooden workshop can be so much more than a workshop. Ideal where a garage may be too large, the Chart workshop can be tailored to your needs. From wood working space to hobby room, large windows or fully insulated store the options are nearly endless.

Design your wooden workshop or studio

Many workshops are taking a small space in a garden, fitting a specific need, maybe somewhere for exploring a growing hobby, space for children outside your main house or the start of a new business based at home. You likely know the space you need, but this is the start of an exciting personalisation process.

Choose from large or small - single or double glazed windows, double or single doors, space to drive a quad in, a secure door for guests or internal lining, we build around you and work with you to make sure you get a workshop, office or hobby space to suit your own needs.

As a timber workshops or studio, is often to be built in a garden, local planning rules may require certain height or size restrictions, for this very reason we offer different roof styles that can maximise internal space without straying outside permitted development rules. (Always check with your local planning department.)

Roof shape, timber cladding choices and window/door styles will edge your timber building towards a traditional or contemporary style and the Chart team are on hand to help and guide in this process.

1. Choose Size
2. Select Options
3. Get quote
Start Designing
Ranges & specifications
Clipper Workshop

Clipper Workshop

A great spec for a functional workshop. A good solid building, lined with eco-breathable membrane and ready to go, with the chance for you to finish it as you wish. Constructed from pressure treated timber and with an Onduline roof and eco breathable membrane as standard.

  • Pressure treated external shiplap or optional weatherboard cladding.
  • Eaves height of 2.235m .
  • Pressure treated 75mm x 50mm timber framing.
  • Eco-breather membrane between the studwork and exterior cladding.
  • Personal door 762mm wide framed, ledged and braced. Door hung in separate door frame with a pad bolt.
  • 980mm x 659mm  single glazed window with one fixed and one opening pane.
  • Guttering to both front and rear elevations.
  • 125mm x 50mm (5” x 2”) roof purlins. Not pressure treated.
  • Black Onduline roof underlined with OS roofing boards.
  • 75mm x 50mm (3” x 2”) flooring joists covered with OS flooring.
No items found.
  Chart Worshop

Chart Worshop

This is a perfect base building if you want to make a hobby space, office or workshop that you will spend more time in. Increased size pressure treated framing leaves plenty of room for insulation and the upgraded Onduvilla roof tiles add to the aesthetics.

  • Eaves height of 2.235m.
  • Pressure treated 100mm x 50mm timber framing.
  • High-quality shiplap external cladding or optional upgrade to weatherboard.
  • Black Onduvilla lightweight tiles, underlined with OS roofing boards. (other colours available)
  • Single 838mm (w) Personal Door in own frame with rim lock and pull handle
  • Pressure treated window 980mm x 659mm single glazed  (1 fixed and 1 opening pane).
  • Guttering and downpipe to front and rear of Workshop.
  • 75mm x 50mm timber flooring structure, covered with OS board.
No items found.
Options
Our timber buildings are designed to your specification, so you can choose from a number of different options, including roofing, cladding, lining and features/fittings. Depending upon the range of building you choose, some of these options are included as standard and a few are only available on a particular specification/range.
Onduline
Onduline is a tried-and-tested roofing material. Black Onduline is supplied as standard, but red, brown and green are also available.
Onduline
Onduvilla
Onduvilla is a popular alternative to Onduline but offers a tiled effect design. Available in black, shaded brown and shaded red.
Onduvilla
Tapco Slate
Tapco looks just like Welsh slate but is manufactured from a recyclable blend of limestone & polypropylene. Tapco Slate will not break or delaminate.
Tapco Slate
Cedar Shingles
Cedar shingles can be used as an attractive and natural-looking alternative to conventional tiles.
Cedar Shingles
Clay & Slate Tiles
Our Chester Range of buildings can optionally be designed to support a variety of clay and slate tiles. Tilling to be undertaken by your own roof contractor.
Clay & Slate Tiles
Ply Lining
Available as an upgrade or option across our ranges is full and half height ply lining.
Ply Lining
Clipper Double Doors
2134mm x 2070mm and made from pressure treated shiplap cladding the doors are framed, ledged and braced.Eco membrane lining included and fitted with hinges, internal bolts and external pad bolt.
Clipper Double Doors
Chart Double Door
2286mm x 2032mm and made from pressure treated shiplap cladding the doors are morticed, framed, ledged & braced and hung in a separate frame. Eco membrane lining included and fitted with hinges, internal bolts and rim lock.
Chart Double Door
Clipper Personal Door
762mm x 2070mm shiplap cladding, legded and braced door. Lined with eco-breathable membrane included hinges and pad bolt.
Clipper Personal Door
Chart Personal Door
838mm x 2032mm shiplap cladding, morticed, framed legded and braced door hung in a separate frame. Lined with eco-breathable membrane and fitted with a Yale lock (inward opening) or rim lock (inward/outward opening)
Chart Personal Door
Single Window Timber
550mm x 660mm (21" x26") one opening pain single glazed with 3mm glass
Single Window Timber
Double Window Timber
990mm x 660mm (30" x26") one opening one fixed pain single glazed with 3mm glass
Double Window Timber
Tripple Window Timber
1460mm x 660mm (57" x26") one opening pain two fixed pain, single glazed with 3mm glass
Tripple Window Timber
Quadruple Window Timber
1980mm x 660mm (68" x26") one opening three fixed pain single glazed with 3mm glass
Quadruple Window Timber
Double Glazed Window Timber
Single, double or triple framed options. Double glazed for improved insulation
Double Glazed Window Timber
PVC Windows
Single, double or triple framed options. Increased security, easy maintenance available in different colours and effects.
PVC Windows
Design Your own
Create your own design in three easy steps and build a quote.
Step 1.
Let's get started
Can we start by taking your first name?
We typically quote on building dimensions, but if you're unsure what size you need, select a number of bays.
Click i for more info
info
depth
Click i for more info
info
width
Click i for more info
info
width
Click i for more info
info
depth
We typically quote on building dimensions, but if you're unsure what size you need, select a number of parking bays.
Click i for more info
info
Click i for more info
info
Click i for more info
info
Click i for more info
info
Step 2.
That's great
Name
, now select some features
We will confirm with you where you would like doors & windows positioned
Step 3.
Okay, let's get your quote
Your Details
Any other requirements?
Can we keep in touch?
*You can unsubscribe at any time using the link in the footer of any email you receive from us, or by contacting us. We will treat your information with respect. For more information about our privacy practices please see our privacy policy. By opting in, you agree that we may process your information in accordance with these terms.
Thank you! Your design has been sent to us and we'll send you a quote ASAP.
Oops! Something went wrong - check your entries and try again.
Next
Pricing Examples
Each of our buildings is unique, designed and built to your specifications. With so many different sizes, configurations and options available, it's best to let us know exactly what you want and we will give you a bespoke quote. You can design your own building online or get in touch directly. If you're not ready to build a quote, we also have a brochure you can download here. Below are a few pricing examples to give you an idea of cost.
See full Price List
£3,261
+ VAT
Small Workshop
A sensible size (12' x 10') for an artists studio or hobby workshop including window and personal door.
Clipper Workshop
  • 3.6m x 3.0m timber workshop
  • 75mm x 50mm pressure treated timber framing
  • Personal door 762mm wide
  • OSB boarded floor
  • Single window, guttering and Onduline roofing
£6,721
+ VAT
Mid Size Workshop
Perfect for a home wood turner or for fitting out as a home office this workshop adds in two timber double glazed windows to each side.
Chart Worshop
  • 5.4m x 3.0m Timber Workshop
  • 2 double glazed timber windows each side - 1105mm x865mm
  • 75mm x 50mm pressure treated timber framing
  • Personal door 838mm wide (in own frame)
  • OSB boarded floor
  • Onduline roofing & guttering included
£8,426
+ VAT
Premium Workshop
With upgraded framing and anthracite PVC doors and windows this workshop is ready to be tailored into a flexible timber building you require.
Chart Worshop
  • 5.4m x 3.6m Timber Workshop
  • 100mm x 50mm pressure treated timber framing
  • Anthracite PVC windows to both sides 1190x1010mm
  • Anthracite PVC Security door
  • Onduvila roof tiles
Guides, Advice & Inspiration
Treated timber for long life wooden garages

Treated timber for long life wooden garages

Using good quality treated timber extends the lifespan of a wooden garage, but what does 'treatment' mean?
How Green Are Timber Garages

How Green Are Timber Garages

Is timber the most environmentally building option for wooden garages and workshops? How green is a timber building?

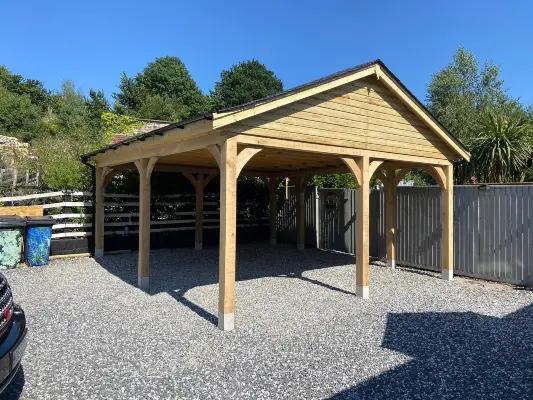

Do garages need planning consent?
